PP-R (Polypropylene) Pipes
Solid pipe PN10, L-4m
Ø mm
kod R3510
20 x 1,9
25 x 2,3
32 x 2,9
40 x 3,7
50 x 4,6
63 x 5,8
75 x 6,8
90 x 8,2
110 x 10,0
Solid pipe PN16, L-4m
Ø mm
20 x 2,8
25 x 3,5
32 x 4,4
40 x 5,5
50 x 6,9
63 x 8,6
75 x 10,3
90 x 12,3
110 x 15,1
kod P3520
Solid pipe PN20, L-4m/3m
Ø mm
kod P3533
16 x 2,7
20 x 3,4
25 x 4,2
32 x 5,4
40 x 6,7
50 x 8,3
63 x 10,5
75 x 12,5
90 x 15,0
110 x 18,3
Glass fibre multilayer pipe PN20, L=4m
Ø mm
kod R3560
20 x 2,8
25 x 3,5
32 x 4,4
40 x 5,5
50 x 6,9
63 x 8,6
75 x 10,3
90 x 12,3
110 x 15,1
PP-R FITTINGS
Elbow 90°
Ø mm
kod P2040
16
20
25
32
40
50
63
75
90
110
Elbow 45°
Ø mm
kod P2050
16
20
25
32
40
50
63
75
Elbow 90° female/male
Ø mm
kod P2090
16
20
25
32
Elbow 45° female/male
Ø mm
kod P2080
16
20
25
32
Elbow FT
Ø mm
kod P2240
16 x 1/2″
20 x 1/2″
20 x 3/4″
25 x 1/2″
25 x 3/4″
32 x 3/4″
32 x 1″
Elbow FT with wall hanger
Ø mm
kod P2220
16 x 1/2″
20 x 1/2″
20 x 3/4″
25 x 1/2″
25 x 3/4″
32 x 3/4″
32 x 1″
Elbow MT
Ø mm
kod P2340
16 x 1/2″
20 x 1/2″
20 x 3/4″
25 x 1/2″
25 x 3/4″
32 x 3/4″
32 x 1″
Elbow MT with wall hanger
Ø mm
kod P2320
16 x 1/2″
20 x 1/2″
20 x 3/4″
25 x 1/2″
25 x 3/4″
Tee
Ø mm
kod P3000
16
20
25
32
40
50
63
75
90
110
Reducing Tee
Ø mm
kod P3100
20/16
25/16
25/20
32/16
32/20
32/25
40/20
40/25
40/32
50/20
50/25
50/32
50/40
63/20
63/25
63/32
63/40
63/50
75/25
75/32
75/40
75/50
75/63
90/50
90/63
90/75
110/90
Tee FT
Ø mm
kod P3200
16 x 1/2″
20 x 1/2″
20 x 3/4″
25 x 1/2″
25 x 3/4″
32 x 3/4″
32 x 1″
Tee FT with wall hanger
Ø mm
kod P3220
20 x 1/2″
Tee MT
Ø mm
kod P3300
16 x 1/2″
20 x 1/2″
20 x 3/4″
25 x 1/2″
25 x 3/4″
32 x 3/4″
32 x 1″
Socket
Ø mm
kod P1000
16
20
25
32
40
50
63
75
90
110
Reducer
Ø mm
kod P1100
20/16
25/16
25/20
32/20
32/25
40/20
40/25
40/32
50/32
50/40
63/32
63/40
63/50
75/40
75/50
75/63
90/50
90/63
90/75
110/90
Coupling FT
Ø mm
kod P1200
16 x 1/2″
20 x 1/2″
20 x 3/4″
25 x 1/2″
25 x 3/4″
32 x 3/4″
32 x 1″
40 x 5/4″
50 x 6/4″
63 x 2″
75 x 2 1/2″
90 x 3″
110 x 4″
Coupling MT
Ø mm
kod P1300
16 x 1/2″
20 x 1/2″
20 x 3/4″
25 x 1/2″
25 x 3/4″
25 x 1″
32 x 3/4″
32 x 1″
40 x 1″
40 x 5/4″
50 x 6/4″
63 x 2″
75 x 2 1/2″
90 x 3″”
110 x 4″
End Cap
Ø mm
kod P4000
16
20
25
32
40
50
63
75
90
110
Pipe-screwing FT
Ø mm
kod P8210
16 x 1/2″
20 x 1/2″
25 x 3/4″
32 x 1″
Pipe-screwing MT
Ø mm
kod P8300
16 x 1/2″
20 x 1/2″
25 x 3/4″
32 x 1″
Coupling with nut FT
Ø mm
kod P8200
16 x 1/2″
16 x 3/4″
20 x 3/4″
25 x 1″
Holender union
Ø mm
kod P8000
20
25
OTHER ELEMENTS OF THE SYSTEM PP-R
Ball valve
Ø mm
kod P5060
16
20
25
32
40
50
63
Stop valve
Ø mm
kod P5070
16
20
25
32
40
50
63
Cross-over PN 20
Ø mm
kod P6000
16
20
25
32
Compensating loop PN 20
Ø mm
kod P6070
16
20
25
32
40
Cross-over with sockets
Ø mm
kod PP6020
20
Wall mounting set with elbows
Ø mm
kod P7270
20×1/2″ R=150
20×1/2″ R=100
Wall mounting set
Ø mm
kod P7250
20 x 1/2″
Mounting plate, plastic
Distance
kod P7060
150

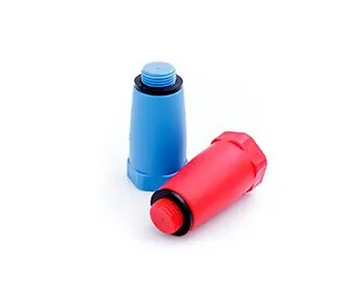

Plug for pressure tests, red/blue
Ø mm
kod P7370
1/2″
Pipe clamp single
Ø mm
kod P9000
16
20
25
32
40
50
63
THE INSTALLATION TOOLS
Welding device
power
kod P0510
800 W
1 500 W
Welding set 1500W
power/heating endings
kod P0500
1500W/20-40
*included:
● welding device with stand
● heating endings Ø20 – Ø40,
● mounting bolts,
●shears,
● 2 plugs for pressure tests,
● spirit level,
● 2m retractable tape measure,
● metal case
Installation tools
power/heating endings
kod P0500
1500W/20-40
* included:
● welding device with stand,
● heating endings Ø20 – Ø40,
● mounting bolts,
● metal case
Installation tools 2000W
power/heating endings
kod P0500
2000W/75-110
Heating endings
Ø mm
kod P0600
16
20
25
32
40
50
63
75
90
110
Bolts for heating endings
Ø mm
kodP0650
8
Peeling tool for stabi pipe
Ø mm
kodP000Z
16/20
20/25
25/32
32/40
50
63
75
90
110
Pipe shears
Ø mm
kodP0700
40
63
Disc cutter
Ø mm
kodP0700
63-110
MMP, PE-RT & PE-Xc Pipes For Underfloor Heating/Cooling
Metal composite pipe MMP
HAKAflex PE-RT I/AI/PE-RT I
The extremely flexible HAKAflex metal composite pipe was specially developed for heating installers. The innovative interaction of the temperature-resistant polyethylene and an aluminium layer makes the pipe very flexible and thus extremely durable and easy to lay.
Application areas
-
Surface heating
-
Cooling system
-
Radiator connection
Advantages
-
No oxygen diffusion thanks to butt-welded aluminium layer
-
Low thermal linear expansion
-
Resistant to numerous chemicals
-
High flexibility and yet dimensionally stable laying
-
No incrustation thanks to the smooth inner pipe surface
For information about wholesale and retail orders and prices, please contact us or visit our warehouse.
Layer composition
-
Outer layer of PE-RT type I
-
Adhesion promotor
-
Longitudinally butt welded aluminium pipe
-
Adhesion promotor
-
Inner layer of PE-RT type I
Properties
All-plastic pipe MPP
HAKAultraflex PE-RT
The five-layer HAKAultraflex all-plastic pipe for underfloor heating made of PE-RT type I was specially developed for heating installers. The innovative interaction of the materials makes the pipe very flexible and thus extremely easy to lay.
Application areas
-
Surface heating
-
Cooling system
-
Concrete core activation
Advantages
-
Extremely flexible and easy to install even at low temperatures
-
Corrosion and incrustation resistant
-
Resistant to numerous chemicals
-
Oxygen-tight (five-layer pipe) according to DIN 4726
-
Excellent stress rupture resistance
For information about wholesale and retail orders and prices, please contact us or visit our warehouse.
Layer composition
-
Outer layer of PE-RT type I
-
Adhesion promoter
-
EVOH-Oxygen barrier layer
-
Adhesion promoter
-
Inner layer of PE-RT type I
Properties
Pre-Insulated Metal Composite Pipe
HAKAthen PE-RT/AL/PE-RT &
PE-Xc/AL/PE-Xc
Application areas
-
heat and cold conducting pipes in sanitary and heating engineering
-
process heat and cold in industrial and plant engineering
-
ventilation and air conditioning
Thanks to pre-insulated pipes, energy loss for heat- and cold-carrying piping is reduced by up to 100%, ensuring sustainable energy savings. This is made possible by the innovative composition of the insulating foam in combination with the homogeneous outer layer, which is offered in white, red and blue.
Advantages
-
reduction of energy losses in heat- and cold-carrying pipes by up to 100%
-
Polyethylene flexible foam free from HCFCs
-
subsequent insulation of the already installed pipes is no longer necessary
-
no condensation
-
sound decoupling properties
-
simple and economical installation
For information about wholesale and retail orders and prices, please contact us or visit our warehouse.
Product Overview
Standard insulation, insulation thickness 6 mm, 9/10 mm, 13 mm
GEG 50%, insulation thickness 10 mm, 15 mm
GEG 100%, insulation thickness 20 mm
Metal composite pipe MMP
HAKAthen PE-Xc/AL/PE-Xc &
PE-RT II/AI/PE-RT II
The combination of plastic and aluminium forms a unique synergy with outstanding properties and application possibilities for building technology. Plastic stands for flexibility, maximum tightness and chemical resistance. Aluminium impresses with low linear expansion as well as pressure and temperature resistance – the perfect combination for long-lasting and durable technology.
Application areas
-
Drinking water installation
-
Heating installation
-
Surface heating
-
Cooling system
-
Gas interior installation
-
Radiator connection
Advantages
-
Aluminium-inner pipe longitudinally butt-welded using laser welding technologie, no oxygen diffusion
-
High temperature and pressure resistance for all heating and plumbing applications
-
Resistant to numerous chemicals
-
High flexibility and yet dimensionally stable laying
-
No incrustation thanks to the smooth inner pipe surface
For information about wholesale and retail orders and prices, please contact us or visit our warehouse.
Properties
Layer composition
-
Outer layer of PE-RT type II (or PE-Xc)
-
Adhesion promotor
-
Aluminium-inner pipe longitudinally butt-welded using laser welding technologie
-
Adhesion promotor
-
Inner layer of PE-RT type II or (PE-Xc)
HAKAthen MMP PE-RT II / AL / PE-RT II
Available As
Small dimensions for maximum efficiency
How They Work
A ceiling / wall heating system is a surface heating system and utilises the entire surface to transmit heat or cooling. In contrast to radiators, there is hardly any convection due to the low surface temperature. The radiant heat spreads at right angles to the surface, i.e. from top to bottom in the case of ceiling heating. When the radiant heat comes into contact with furnishings, the f loor or a human body, it is converted into heat.
